5*11 Hole 900mm Width Galvanized Sheet Metal Rib Lath Mesh 2.5m Length

5*11 Hole 900mm Width Galvanized Sheet Metal Rib Lath Mesh 2.5m Length

5*11mm hole is the smallest hole we can produe.This goods is drawn into the strip through professional machine cut expansion.This is made of the galvanized plate.The hole size is :8*12mm .it is a completely non-expansion of the network connection of the steel, the material from the pre-galvanized steel or 304 stainless steel, because of its special mesh and nets uniform surface of the V-shaped rib structure, making flat screen its strength characteristics. Widely used in suspended ceiling, light steel spacer grout paint.
Made of hot galvanized steel punching expansion is made with a V-shaped ribs to increase the tensile strength. Longitudinal stiffeners make large depth of coating applicator has a uniform depth. Widely used in plaster walls and suspended ceilings, plastering construction substrates.

Usage:

1. High rise residential light compartment, firewall;
2. Constructed compartment door, partition;
3. Floor slabs, partition walls
4. Within a permanent workshop walls, fences;
5. Double-walled basement moisture
6. Combining seam construction work;
7. Tunnels, sewers, wall project;
8. Laval Foundation, docks, retaining walls;
9. Flat and arched floor
10. Nuclear power plants, storage tanks and other circular shape structure;
11. Landscaping sculptures and other special projects;
12. Slope protection, embankments and other projects.

Regular size:

Mesh hole : 5*11mm
The sheet's thickness: 0.3mm,0.35mm,0.4mm
Rib height: 9mm
Rib distance:100mm
Width:500mm,600mm,700mm,800mm,900mm
Length:2-3m

Advantages:

1, Filling self-compacting, vibration-free;
2, Pouring Free dismantle Free clean-up;
3, no roughened surface to provide an effective combination;
4, small size, light weight, easy handling;
5, easy to cut, easy to make steel throughout, easy to tie nail;
6 to prevent violent mold, keeping the site clean;
7, and easy drainage mesh, and reinforcing structure;
8, to prevent the concrete surface cracks;
9, labor, material saving, high efficiency;
10, saving template support material.

flat rib lath

rib lath cladding

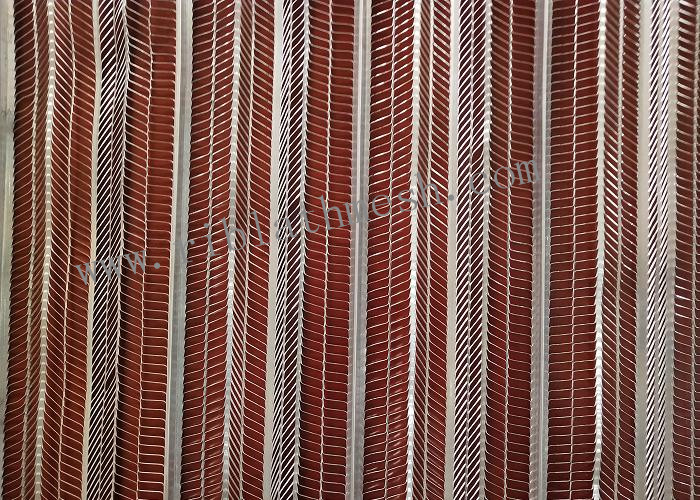

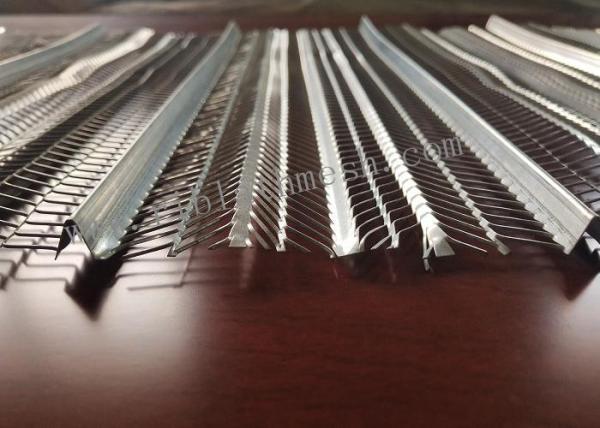

5*11 Hole 900mm Width Galvanized Sheet Metal Rib Lath Mesh 2.5m Length Images
