Jf0708 Galvanized Rib Lath Mesh 0.28mm Thickness 600mm Width

JF0708 Galvanized Rib Lath Mesh 0.28mm Thickness 600mm Width

JF0708 Galvanized Rib Lath is made of hot galvanized steel punching expansion is made with a V-shaped ribs to increase the tensile strength. Longitudinal stiffeners make large depth of coating applicator has a uniform depth. Widely used in plaster walls and suspended ceilings, plastering construction substrates.

JF0708 Galvanized Rib Lath Mesh have 7 Ribs .The rib Height is 8mm and the hole size is 8*12mm.This is drawn into the strip through professional machine cut expansion.It is a completely non-expansion of the network connection of the steel, the material from the pre-galvanized steel . because of its special mesh and nets uniform surface of the V-shaped rib structure, making flat screen its strength characteristics. Widely used in suspended ceiling, light steel spacer grout paint.

Regular size:

Mesh hole : 8*12mm
The sheet's thickness: 0.3mm
Rib height: 8mm
Rib distance:100mm
Width:600mm
Length:2-3m

0.28mm thickness rib lath mesh

rib lath mesh galvanized

600mm width galvanized rib lath

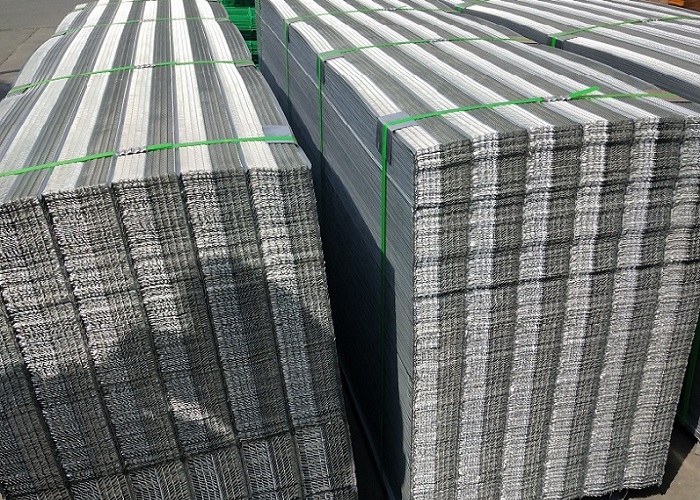

Jf0708 Galvanized Rib Lath Mesh 0.28mm Thickness 600mm Width Images
