Brand Name : JIAFU
Model Number : JF1008
Place of Origin : ANPING HEBEI CHINA
MOQ : 1000pcs
Supply Ability : 5 containers /month
Delivery Time : 15-20days
Packaging Details : by pallet
width : 500-900mm
Hole : 5*11mm
Length : 1-3m
Rib Height : 9mm
Material : Galvaninzed plate
Rib distance : 100mm
900mm Metal Rib Lath V Type Reinforced Structure In The Surface 3m Length
Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface. This type the hole size is 5*11mm.We can produce the width:500mm,600mm,700mm,800mm,900mm.
Material:
Galvanized Steel Plate
Specification
Width:500mm,600mm,700mm,800mm,900mm
Thickness:0.3-0.4mm
Hole size:5*11mm
Tendons Height:9mm
Length:1-3m
TYPE | THICKNESS(MM) | SW*LW(mm) | Tendons Height(mm) | Reinforcement Distance(mm) | Width(MM) |
JF1008 | 0.3mm-0.4mm | 5*11 | 9 | 100 | 500-900mm |
Application:

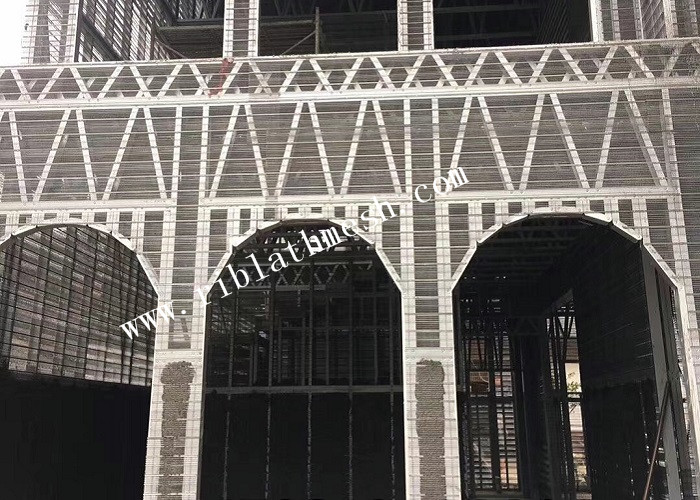

Widely used as a background for plaster, render, stucco application in construction of suspended ceilings partition.
Feature:
Rib Lath offers special extension due to its special opening and the uniform V type reinforced structure in the surface.
![]() |
900mm Metal Rib Lath V Type Reinforced Structure In Surface 3m Length Images |
